	Index Ropla	PDC4767

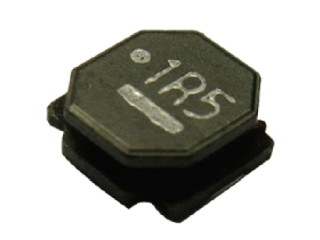

	Manufacturer's part number	CSMS0520D-100M-LRH
	Manufacturer	PDC
	Data sheet	csms0520d-xxxx-lrh.pdf (423,00KB)

Product group	Chokes
Manufacturer	PDC
Product Type	Inductor
Series	CSMS0520D
Technology	Wire Wound
Protection style	yes
Core Material	ferrite
Inductance	10µH
Tolerance	20%
Maximum DC Current I_RMS	1.45A
Maximum DC Resistance R_DC	120mΩ
Test Frequency f_L	100kHz
Saturation Current I_SAT	1.3A
Self Resonant Frequency SRF_min	24MHz
Product category	Shielded Power Inductor
Package/Case	4.9x4.9x2.0
Mounting Style	SMD
Packaging	Reel 7"
Tₘᵢₙ	-25°C
Tₘₐₓ	125°C

Collective package	800/3,200/19,200 pcs
Customs number	85041020

RoHS	pdc_rohs_coil.pdf (414,91KB) product compliant with the RoHS Directive
REACH	pdc_reach_coil.pdf (0,99MB)

800	pcs	Minimum order quantity
800	pcs	Multiple
800/3,200/19,200	pcs	Collective package
