	Index Ropla	PDC4742

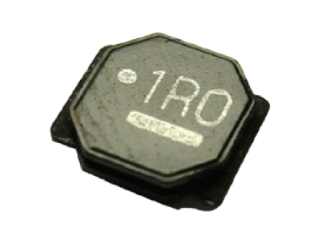

	Manufacturer's part number	CSMS0510D-100M-LRH
	Manufacturer	PDC
	Data sheet	csms0510d-xxxx-lrh.pdf (427,46KB)

Product group	Chokes
Manufacturer	PDC
Product Type	Inductor
Series	CSMS0510D
Technology	Wire Wound
Protection style	yes
Core Material	ferrite
Inductance	10µH
Tolerance	20%
Maximum DC Current I_RMS	900mA
Maximum DC Resistance R_DC	250mΩ
Test Frequency f_L	100kHz
Saturation Current I_SAT	850mA
Self Resonant Frequency SRF_min	23MHz
Product category	Shielded Power Inductor
Package/Case	4.9x4.9x1.0
Mounting Style	SMD
Packaging	Reel 7"
Tₘᵢₙ	-25°C
Tₘₐₓ	125°C

Collective package	1,000/4,000/24,000 pcs
Customs number	85041020

RoHS	pdc_rohs_coil.pdf (414,91KB) product compliant with the RoHS Directive
REACH	pdc_reach_coil.pdf (0,99MB)

1,000	pcs	Minimum order quantity
1,000	pcs	Multiple
1,000/4,000/24,000	pcs	Collective package
