Index Ropla OKA0241
Manufacturer's part number AFV450V474K
Manufacturer Okaya
Data sheet /oka/afv.pdf afv.pdf (93,81KB)

Product group Film Capacitors
Manufacturer Okaya
Type AC & Pulse
Dielectric polypropylene
Mounting Style THT
Series AFV
Capacitance 470nF
Rated Voltage 450VDC
Tolerance 10%
Package/Case 10.5x21x12
Lead Spacing 10.0mm
dV/dt 350V/µs
Terminals 15mm (min.)
Tₘᵢₙ -40°C
Tₘₐₓ 85°C
Packaging Bag
Collective package -/100/4,000 pcs
Weight 3.033000 g
Weight of the collective package -/303 g/12,132 g
Customs number 85322500

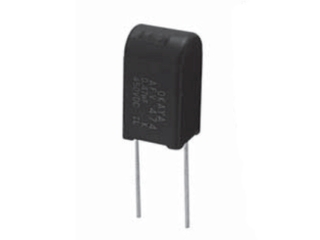

AFV SERIES
High Pulse Capacitor

FEATURES
● For use in active filters and snubbers for electronic circuit.
● Featured metallized polypropylene films to increase electric current withstand capability.
● 50% better dielectric withstand than the HCP series and 3~5 times better than the HCE series.
● The resin case is designed to consume a smaller footprint due to the reduced length and width.
● The case top features a radius which allows for ventilated effects


APPLCATIONS
• TV, PC Display monitor, Electric Appliances (75~500W) and All electric equipment using
switching power supplies or semiconductors requiring snubber circuit.
