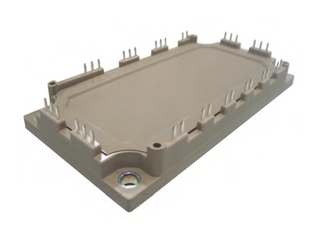

IGBT Module 1200V/100A


	Index Ropla	MMC0022
	Manufacturer's part number	MMG100W120X6TN
	Manufacturer	MacMic Corporation
	Data sheet	mmg100w120x6tn.pdf (372,24KB)

IGBT Module

FEATURES:
● High level of integration
● IGBT CHIP(Trench+Field Stop technology)
● Low saturation voltage and positive temperature coefficient
● Fast switching and short tail current
● Free wheeling diodes with fast and soft reverse recovery
● Temperature sense included
● Industry standard package with insulated copper base
plate and soldering pins for PCB mounting

APPLICATION:
● AC motor control
● Motion/servo control
● Inverter and power supplies

RoHS	product compliant with the RoHS Directive
UL	macmic_ul.pdf (84,83KB)

Product group	IGBT Modules
Manufacturer	MacMic Corporation
Mounting Style	THT
Package/Case	Six-Pack Module
Collector-Emitter Voltage V_CES	1200V @25°C
Collector Current I_C	140A @25°C
Power Dissipation P_D	450W
Collector Emitter Saturation Voltage V_CE(sat)	1.7V @100A
Input Capacitance C_iss	7.1nF
Tₘᵢₙ	-40°C
Tₘₐₓ	125°C
Packaging	Inner Box

Collective package	-/4/20 pcs
Weight	300.000000 g
Weight of the collective package	-/1,200 g/6,000 g
Customs number	85411000

20	pcs	Minimum order quantity
4	pcs	Multiple
-/4/20	pcs	Collective package

0	pcs	on stock
