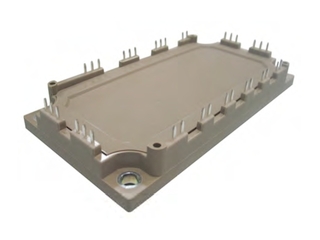

Manufacturer's part number MMGT100W120X6C
Manufacturer MacMic Corporation
Data sheet /mmc/mmgt100w120x6c.pdf mmgt100w120x6c.pdf (371,33KB)

Product group IGBT modules
Manufacturer MacMic Corporation
Mounting Style THT
Package/Case Six-Pack Module
Collector-Emitter Voltage VCES 1200V @25°C
Collector Current IC 150A @25°C
Power Dissipation PD 576W
Collector Emitter Saturation Voltage VCE(sat) 1.75V @100A
Input Capacitance Ciss 14.5nF
Tₘᵢₙ -40°C
Tₘₐₓ 125°C
Packaging Inner Box
Collective package -/5/- pcs
Weight 300.000000 g
Weight of the collective package -/1,500 g/-
Customs number 85411000
IGBT Module

FEATURES:
● High level of integration
● IGBT CHIP(Trench+Field Stop technology)
● Low saturation voltage and positive temperature coefficient
● Fast switching and short tail current
● Free wheeling diodes with fast and soft reverse recovery
● Temperature sense included
● Industry standard package with insulated copper base
plate and soldering pins for PCB mounting

APPLICATION:
● AC motor control
● Motion/servo control
● Inverter and power supplies
