Manufacturer's part number MMG40H120XB6TN
Manufacturer MacMic Corporation
Data sheet /mmc/mmg40h120xb6tn.pdf mmg40h120xb6tn.pdf (221,74KB)

Product group IGBT modules
Manufacturer MacMic Corporation
Mounting Style THT
Collector-Emitter Voltage VCES 1200V @25°C
Collector Current IC 55A @25°C
Power Dissipation PD 195W
Collector Emitter Saturation Voltage VCE(sat) 1.8V @40A
Input Capacitance Ciss 330nF
Tₘᵢₙ -40°C
Tₘₐₓ 125°C
Packaging Inner Box
Collective package -/8/40 pcs
Weight 180.000000 g
Weight of the collective package -/1,440 g/7,200 g
Customs number 85411000

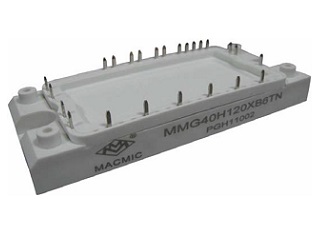

IGBT module

FEATURES
● High level of integration—only one power semiconductor
module required for the whole drive
● Low saturation voltage and positive temperature coefficient
● Fast switching and short tail current
● Free wheeling diodes with fast and soft reverse recovery
● Industry standard package with insulated copper base
plate and soldering pins for PCB mounting
● Temperature sense included

APPLICATIONS
● AC motor control
● Motion/servo control
● Inverter and power supplies
