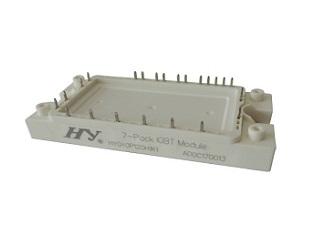

IGBT Module 1200V/40A


	Index Ropla	HYE0652
	Manufacturer's part number	HYG40P120H1S
	Manufacturer	HY Electronic
	Data sheet	hyg40p120h1s.pdf (1,38MB)

Bipolar Transistor with Isolated Gate (IGBT). Semiconductor power element used in power electronics converters with powers up to several hundred kilowatts.

• voltage controlled
• low loss of conduction and switching
• low saturation voltage (Vce sat)
• temperature sensor

Application
• motor drives
• UPS
• AC and DC drive amplifier

RoHS	hy_rohs.pdf (119,55KB) product compliant with the RoHS Directive
REACH	hy_reach.pdf (579,26KB)
UL	hy_ul.pdf (342,82KB)

Product group	IGBT Modules
Manufacturer	HY Electronic
Mounting Style	THT
Collector-Emitter Voltage V_CES	1200V
Collector Current I_C	40A
Power Dissipation P_D	240W
Collector Emitter Saturation Voltage V_CE(sat)	2.0V @35A
Input Capacitance C_iss	4.1nF
Tₘᵢₙ	-40°C
Tₘₐₓ	175°C
Packaging	Inner Box

Collective package	-/8/- pcs
Weight	190.000000 g
Weight of the collective package	-/1,520 g/-
Customs number	85411000

0	pcs	on stock
by special order
obsolete

8	pcs	Minimum order quantity
8	pcs	Multiple
-/8/-	pcs	Collective package
