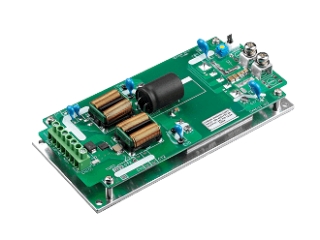

300W 24V/12.5A Isolated DC/DC Converter, 180-425Vin, n=90%, Viso=3000VAC


	Index Ropla	CIN2709
	Manufacturer's part number	CHB300-300S24-CMFC
	Manufacturer	Cincon
	Data sheet	chb300-300s-cmf.pdf (743,71KB)

CHASSIS MOUNT CHB300-300S SERIES 300 WATT 2:1 INPUT DC-DC CONVERTERS

FEATURES:

• 300W Isolated Output
• Efficiency to 90%
• Low No Load Power Consumption
• Fixed Switching Frequency
• Regulated Outputs
• Over Temperature Protection
• Over Voltage/Current Protection
• Remote On/Off
• Continuous Short Circuit Protection
• Shock & Vibration Meet EN61373
• Safety Meets IEC60950 and IEC62368
• UL60950-1 2nd (Reinforced Insulation) Approval for DC Modules
• Build-In EMI Filter
• Fire & Smoke Meet EN45545-2
• Baseplate cooled

RoHS	cincon_rohs.pdf (400,48KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (385,29KB)
CE	ce_chb300-300s-cmf.pdf (35,07KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	300W
Series	CHB300-300S-CMF
Output Voltage 1	24V
Output Current 1	12.5A
Input Voltage	180V ~ 425V
Isolation Voltage	3000VAC
Efficiency	90%
Ripple/Noise	200mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	1/1/20 pcs
Weight	380.000000 g
Weight of the collective package	380 g/380 g/7,600 g
Customs number	85423990
