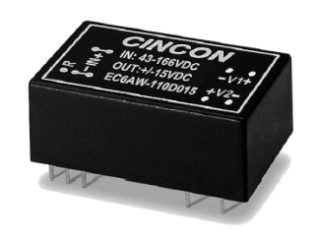

10W ±15V/±333mA Isolated DC/DC Converter, 43-160Vin, n=87.5%, Viso=3000VDC, UL


	Index Ropla	CIN1201
	Manufacturer's part number	EC6AW-110D15
	Manufacturer	Cincon
	Data sheet	ec6aw-110.pdf (523,25KB)

EC6AW-110 SERIES 10 WATT 4:1 INPUT DC-DC CONVERTERS

FEATURES:

• 10W Isolated Output
• Efficiency to 88.5%
• Low No Load Power Consumption
• 4:1 Input Range
• Regulated Outputs
• Input Under-Voltage Protection
• Remote On/Off
• Continuous Short Circuit Protection
• Over Current Protection
• CE Mark Meets 2014/30/EU
• UL60950-1 2nd (Basic Insulation) Approval
• Meets EN50155 with External Circuits
• Shock & Vibration Meets EN50155 (EN61373)
• Fire & Smoke Meets EN45545-2
• 3050m Operating Altitude

RoHS	cincon_rohs.pdf (400,48KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (385,29KB)
UL	ul_ec6aw-110.pdf (14,77KB)
CE	ce_ec6aw-110.pdf (638,85KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	2
Power	10W
Series	EC6AW-110S
Output Voltage 1	15V
Output Current 1	333mA
Input Voltage	43V ~ 160V
Isolation Voltage	3000VDC
Output Voltage 2	-15V
Output Current 2	333mA
Efficiency	87.5%
Ripple/Noise	100mV p-p
Type	Isolated
Package/Case	A (plastic)
Mounting Style	THT
Remote On/Off Logic	positive
Industry	Railway System
Tₘᵢₙ	-40°C
Tₘₐₓ	85°C
Packaging	Tube

Collective package	-/10/150 pcs
Weight	16.000000 g
Weight of the collective package	-/160 g/2,400 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/10/150	pcs	Collective package
