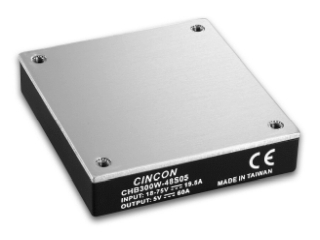

Ropla Elektronik Sp. z o.o. | Stock | Cincon - CHB300W-48S05 - 300W 5V/60A Isolated DC/DC Converter, 18-75Vin, n=90%, Viso=1500VDC

300W 5V/60A Isolated DC/DC Converter, 18-75Vin, n=90%, Viso=1500VDC


	Index Ropla	CIN1004
	Manufacturer's part number	CHB300W-48S05
	Manufacturer	Cincon
	Data sheet	chb300w.pdf (563,46KB)

CHB300W SERIES 300 WATT 4:1 INPUT DC-DC CONVERTERS SINGLE OUTPUT

FEATURES:

• 300W Isolated Output
• Efficiency to 92%
• Fixed Switching Frequency
• Input Under Voltage Protection
• Over Temperature Protection
• Over Voltage/Current Protection
• Remote On/Off
• Industry Standard Half-Brick Package
• Fully Isolated 1500VDC
• Safety Meets UL60950-1, EN60950-1 and IEC60950-1

RoHS	cincon_rohs.pdf (400,48KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (385,29KB)
UL	ul_chb300w.pdf (13,80KB)
CE	ce_chb300w.pdf (706,87KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	300W
Series	CHB300W
Output Voltage 1	5.0V
Output Current 1	60A
Input Voltage	18V ~ 75V
Isolation Voltage	1500VDC
Efficiency	90%
Ripple/Noise	100mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	-/12/24 pcs
Weight	114.000000 g
Weight of the collective package	-/1,368 g/2,736 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/12/24	pcs	Collective package
