Ropla Elektronik Sp. z o.o. | Stock | Cincon - CHB100W-48S05 - 100W 5V/20A Isolated DC/DC Converter, 18-75Vin, n=86%, Viso=1500VDC, UL

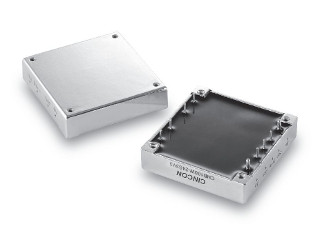

100W 5V/20A Isolated DC/DC Converter, 18-75Vin, n=86%, Viso=1500VDC, UL


	Index Ropla	CIN0400
	Manufacturer's part number	CHB100W-48S05
	Manufacturer	Cincon
	Data sheet	chb100w.pdf (181,69KB)

CHB100W SERIES 66 TO 100 WATT 4:1 INPUT DC-DC CONVERTERS SINGLE OUTPUT

FEATURES:

• 66-100W Isolated Output
• Efficiency to 89%
• 250KHz Switching Frequency
• 4 : 1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Five-Sided Metal Case
• Half-Brick Size Meet Industrial Standard
• CE Mark Meets 2004/108/EC
• UL60950-1 Approval

RoHS	cincon_rohs.pdf (400,48KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (385,29KB)
UL	ul_chb100w.pdf (10,72KB)
CE	ce_chb100w.pdf (31,68KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	100W
Series	CHB100W
Output Voltage 1	5.0V
Output Current 1	20A
Input Voltage	18V ~ 75V
Isolation Voltage	1500VDC
Efficiency	86%
Ripple/Noise	100mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	-/12/24 pcs
Weight	95.000000 g
Weight of the collective package	-/1,140 g/2,280 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/12/24	pcs	Collective package
