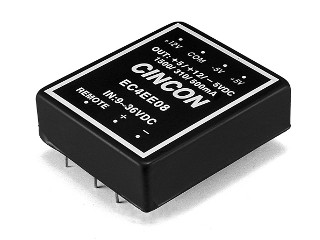

15W ±12V/±625mA Isolated DC/DC Converter 9-36Vin, n=80%, Viso=500VDC

Index Ropla CIN0073
Manufacturer's part number EC4EE04
Manufacturer Cincon
Data sheet /cin/ec4ee.pdf ec4ee.pdf (532,84KB)
Product group DC/DC Converters
Manufacturer Cincon
Number of Outputs 2
Power 15W
Series EC4EE
Output Voltage 1 12V
Output Current 1 625mA
Input Voltage 9.0V ~ 36V
Isolation Voltage 500VDC
Output Voltage 2 -12V
Output Current 2 625mA
Efficiency 80%
Ripple/Noise 75mV p-p
Type Isolated
Package/Case E
Mounting Style THT
Remote On/Off Logic positive
Tₘᵢₙ -25°C
Tₘₐₓ 71°C
Packaging Antistatic Foam
Collective package 1/15/- pcs
Weight 175.000000 g
Weight of the collective package 175 g/2,625 g/-
Customs number 85423990
EC4EE SERIES 15 WATT 4:1 INPUT RANGE DC-DC CONVERTERS

FEATURES:

• 15W Isolated Output
• 4 : 1 Input Range
• Six-Sided Shield Metal Case
• Regulated Outputs
• Efficiency to 82%
• Fixed 200KHz Switching Frequency
• Remote On/Off Control
