Ropla Elektronik Sp. z o.o. | Stock | Akyga battery - LP482933 - Lithium Polymer Battery 3.7V/490mAh, PCM, wires L=32mm

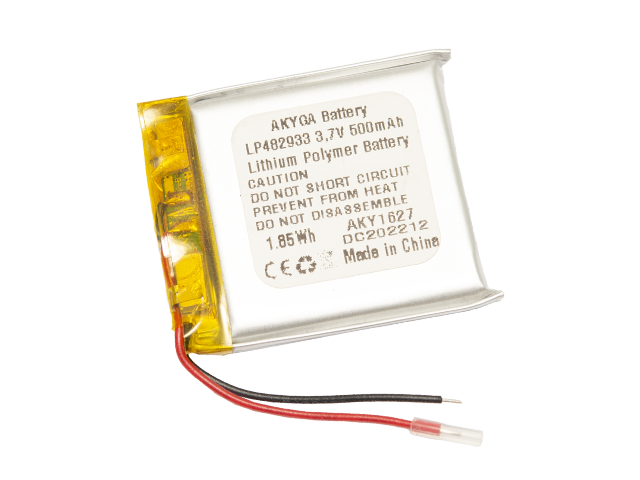

Lithium Polymer Battery 3.7V/490mAh, PCM, wires L=32mm


	Index Ropla	AKY1627
	Manufacturer's part number	LP482933
	Manufacturer	Akyga battery
	Data sheet	aky1627.pdf (929,06KB)

Lithium-polymer battery with a safety PCM circuit and connector

● High current efficiency
● No memory effect
● Good value of the dimensions and capacity of the cell
● High flexibility in the design of shapes and sizes.
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● No electrolyte, carbon materials. Batteries environmentally friendly
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs,
mobile phones, multimedia players. Used as a power source in model, eg. Remote-controlled planes and helicopters.
Very popular in logistics systems GPS and medicine.

RoHS	akyga_rohs_certificate_lipo.pdf (1,01MB) product compliant with the RoHS Directive
REACH	akyga_reach_test_report_lipo.pdf (840,57KB)
CE	akyga_ce_test_report_lipo.pdf (873,43KB)
MSDS	akyga_msds_lipo_batteries.pdf (297,14KB)

AKY0781	Lithium Polymer Battery 3.7V/500mAh, PCM, connector+socket 2.00 JST, 2 pins, L=53mm	547	pcs	on stock
AKY2043	Lithium Polymer Battery 3.7V/2000mAh, PCM, NTC, connector 2.00 JST, 3 pins, L=60mm + 3M tape	0	pcs	on stock
AKY1000	Lithium Polymer Battery 3.7V/450mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=50mm	0	pcs	on stock
AKY2802	Lithium Polymer Battery 3.7V/500mAh, PCM, connector 2.00 JST, 2 pins, L=53mm + 3M tape	0	pcs	on stock
AKY1626	Lithium Polymer Battery 3.7V/500mAh, PCM, wires L=32mm	0	pcs	on stock
AKY0837	Lithium Polymer Battery Li-Po 3.7V/500mAh, PCM+NTC, conector 1.25 Molex, 3 pins, L=20mm	0	pcs	on stock

Product group	Rechargeable Batteries
Manufacturer	Akyga battery
Rechargeable Battery Type	Li-Po
Capacitance	490mAh
Rated Voltage	3.7V
Package/Case	4.8x29x33
Thickness	4.8mm
Width	29mm
High	33mm
Protection	PCM
Leads	wires
Wires	32mm
Wire diameter	28
Nominal Charge Current	0.2C
Nominal Discharge Current	0.2C
Max Charge Current	1C
Max Discharge Current	1C
Tₘᵢₙ	-20°C
Tₘₐₓ	60°C
Packaging	Tray

Collective package	-/12/- pcs
Customs number	85078000

2	pcs	Minimum order quantity
1	pcs	Multiple
-/12/-	pcs	Collective package
