Ropla Elektronik Sp. z o.o. | Lager | Akyga battery - LP503040.3 - Lithium Polymer Battery 3.7V/560mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=80mm

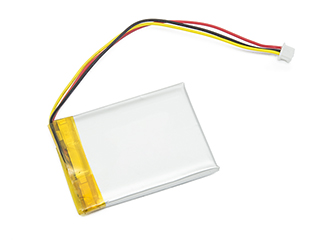

Lithium Polymer Battery 3.7V/560mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=80mm


	Index Ropla	AKY0439
	Herstellerkennzeichnung	LP503040.3
	Hersteller	Akyga battery
	Katalogkarte	aky0439.pdf (0,97MB)

Lithium-polymer battery with a safety PCM circuit and NTC

● High current efficiency
● No memory effect
● Good value of the dimensions and capacity of the cell
● High flexibility in the design of shapes and sizes.
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● No electrolyte, carbon materials. Batteries environmentally friendly
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs,
mobile phones, multimedia players. Used as a power source in model, eg. Remote-controlled planes and helicopters.
Very popular in logistics systems GPS and medicine.

RoHS	akyga_rohs_certificate_lipo.pdf (1,01MB) Ware entspricht der RoHS-Richtlinie
REACH	akyga_reach_test_report_lipo.pdf (798,26KB)
UL	akyga_ul1642_lp503040_560mah.pdf (1,69MB)
CE	akyga_ce_test_report_lipo.pdf (873,43KB)
MSDS	akyga_msds_lp503040_560mah.pdf (290,63KB)
IEC	akyga_iec_62133_lp503040_560mah.pdf (1,48MB)

AKY0712	Lithium Polymer Battery 3.7V/560mAh, PCM(2xMOSFET)+NTC, connector 1.25 Molex, 3 pins, L=80mm	648	pcs	on stock
AKY0833	Lithium Polymer Battery 3.7V/560mAh, PCM(2xMOSFET)+NTC, connector 1.25 Molex, 3 pins, L=80mm	20	pcs	on stock
AKY0225	Lithium Polymer Battery 3.7V/560mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=100mm	0	pcs	on stock
AKY1498	Lithium Polymer Battery 3.7V/750mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=30mm	3	pcs	on stock

Warengruppe	Rechargeable Batteries
Hersteller	Akyga battery
Rechargeable Battery Type	Li-Po
Package/Case	5.0x30x40
Thickness	5.0mm
Width	30mm
High	40mm
Rated Voltage	3.7V
Capacitance	560mAh
Protection	PCM+NTC
Leads	connector
Wires	80mm
Connector type	Molex 51021-0300
Pins	3
Lead Spacing	1.25mm
Nominal Charge Current	0.2C
Nominal Discharge Current	0.2C
Max Charge Current	1C
Max Discharge Current	1C
Tₘᵢₙ	-20°C
Tₘₐₓ	60°C
Packaging	tray

Sammelverpackung	-/12/- pcs
Gewicht	12.300000 g
Gewicht Sammelverpackung	-/148 g/-
Zolltarifnummer	85078000

2	pcs	Minimum order quantity
1	pcs	Multiple
-/12/-	pcs	Sammelverpackung
