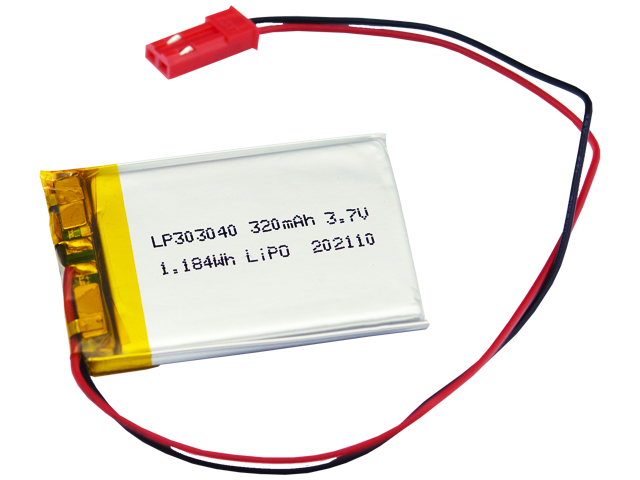

Ropla Elektronik Sp. z o.o. | Lager | Akyga battery - LP303040 - Lithium Polymer Battery 3.7V/320mAh, PCM, connector+socket 2.54 JST, 2 pins, L=150mm

Lithium Polymer Battery 3.7V/320mAh, PCM, connector+socket 2.54 JST, 2 pins, L=150mm


	Index Ropla	AKY0300
	Herstellerkennzeichnung	LP303040
	Hersteller	Akyga battery
	Katalogkarte	aky0300.pdf (926,80KB)

Lithium-polymer battery with a safety PCM circuit and connector

● High current efficiency
● No memory effect
● Good value of the dimensions and capacity of the cell
● High flexibility in the design of shapes and sizes.
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● No electrolyte, carbon materials. Batteries environmentally friendly
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs,
mobile phones, multimedia players. Used as a power source in model, eg. Remote-controlled planes and helicopters.
Very popular in logistics systems GPS and medicine.

RoHS	akyga_rohs_certificate_lipo.pdf (1,01MB) Ware entspricht der RoHS-Richtlinie
REACH	akyga_reach_test_report_lipo.pdf (798,26KB)
CE	akyga_ce_test_report_lipo.pdf (873,43KB)
MSDS	akyga_msds_lp303040_320mah.pdf (290,57KB)
UN383	akyga_un38.3_lp303040_320mah.pdf (1,71MB)

AKY1499	Lithium Polymer Battery 3.7V/300mAh, PCM+NTC, wires L=45mm	10	pcs	on stock
AKY1127	Lithium Polymer Battery 3.7V/300mAh, PCM, connector 2.00 JST, 2 pins, L=80mm	0	pcs	on stock
AKY0821	Lithium Polymer Battery 3.7V/320mAh, PCM, connector 1.25 Molex, 2 pins, L=150mm	0	pcs	on stock
AKY0965	Lithium Polymer Battery 3.7V/320mAh, PCM, connector 1.50 JS-1173-02, 2 pins, double stick 3M tape, L	1.023	pcs	on stock
AKY0974	Lithium Polymer Battery 3.7V/320mAh, PCM, connector 1.50 JS-1173-02, 2 pins, L=60mm	0	pcs	on stock
AKY1141	Lithium Polymer Battery 3.7V/320mAh, PCM, connector 2.00 JST, 2 pins, L=55mm	0	pcs	on stock
AKY1142	Lithium Polymer Battery 3.7V/320mAh, PCM, connector 2.00 JST, 2 pins, L=55mm	0	pcs	on stock

Warengruppe	Rechargeable Batteries
Hersteller	Akyga battery
Rechargeable Battery Type	Li-Po
Package/Case	3.0x30x40
Thickness	3.0mm
Width	30mm
High	40mm
Rated Voltage	3.7V
Capacitance	320mAh
Protection	PCM
Leads	konektor+gniazdo
Wires	150mm
Connector type	JST SYP-02T-1
Pins	2
Lead Spacing	2.54mm
Nominal Charge Current	0.2C
Nominal Discharge Current	0.2C
Max Charge Current	1C
Max Discharge Current	1C
Tₘᵢₙ	-20°C
Tₘₐₓ	60°C
Packaging	tray

Sammelverpackung	-/12/- pcs
Gewicht	8.170000 g
Gewicht Sammelverpackung	-/98 g/-
Zolltarifnummer	85078000

2	pcs	Minimum order quantity
1	pcs	Multiple
-/12/-	pcs	Sammelverpackung

2.397	pcs	on stock
+ 320	pcs	from 2023-04-14
