Ropla Elektronik Sp. z o.o. | Lager | Akyga battery - LP403035 - Lithium Polymer Battery 3.7V/400mAh, PCM, connector 2.54 JST, 2 pins, L=10mm

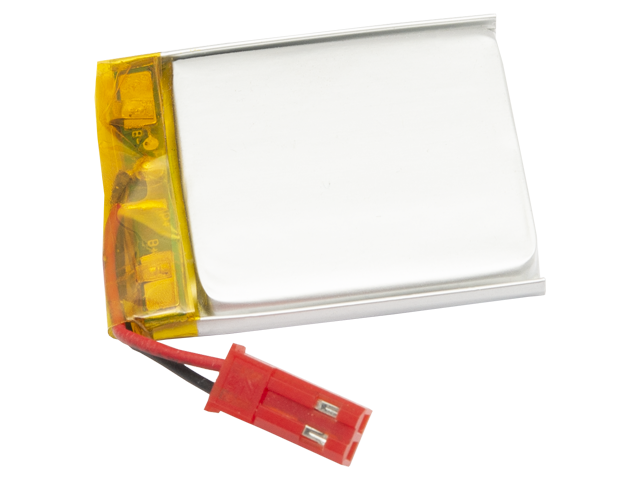

Lithium Polymer Battery 3.7V/400mAh, PCM, connector 2.54 JST, 2 pins, L=10mm


	Index Ropla	AKY0813
	Herstellerkennzeichnung	LP403035
	Hersteller	Akyga battery
	Katalogkarte	aky0813.pdf (914,96KB)

Lithium-polymer battery

● High current efficiency
● No memory effect
● Good value of the dimensions and capacity of the cell
● High flexibility in the design of shapes and sizes.
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● No electrolyte, carbon materials. Batteries environmentally friendly
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs,
mobile phones, multimedia players. Used as a power source in model, eg. Remote-controlled planes and helicopters.
Very popular in logistics systems GPS and medicine.

RoHS	akyga_rohs_certificate_lipo.pdf (1,01MB) Ware entspricht der RoHS-Richtlinie
REACH	akyga_reach_test_report_lipo.pdf (798,26KB)
UL	akyga_ul1642_lp403035_400mah.pdf (1,69MB)
CE	akyga_ce_test_report_lipo.pdf (873,43KB)
MSDS	akyga_msds_lp403035_400mah.pdf (290,55KB)
UN383	akyga_un38.3_lp403035_400mah.pdf (1,56MB)

AKY1143	Lithium Polymer Battery 3.7V/350mAh, PCM, connector 2.00 JST, 2 pins, L=55mm	0	pcs	on stock
AKY1604	Lithium Polymer Battery 3.7V/400mAh 5C, PCM, connector 1.25 Molex, 2 pins, L=70mm	2.008	pcs	on stock
AKY0738	Lithium Polymer Battery 3.7V/400mAh, PCM, connector 1.00 JST, 2 pins, L=40mm	0	pcs	on stock
AKY0819	Lithium Polymer Battery 3.7V/400mAh, PCM, connector 1.25 Molex, 2 pins, L=70mm	0	pcs	on stock
AKY1581	Lithium Polymer Battery 3.7V/400mAh, PCM, connector 1.25 Molex, 2 pins, L=70mm	0	pcs	on stock
AKY0386	Lithium Polymer Battery 3.7V/400mAh, PCM, connector+socket 2.54 JST, 2 pins, L=150mm	0	pcs	on stock
AKY1684	Lithium Polymer Battery 3.7V/500mAh, PCM, wires L=32mm	0	pcs	on stock

Warengruppe	Rechargeable Batteries
Hersteller	Akyga battery
Rechargeable Battery Type	Li-Po
Package/Case	4.0x30x35
Thickness	4.0mm
Width	30mm
High	35mm
Rated Voltage	3.7V
Capacitance	400mAh
Protection	PCM
Leads	konektor+gniazdo
Wires	10mm
Connector type	JST SYP-02T-1
Pins	2
Lead Spacing	2.54mm
Nominal Charge Current	0.2C
Nominal Discharge Current	0.2C
Max Charge Current	1C
Max Discharge Current	1C
Impedance	71mΩ
Tₘᵢₙ	-20°C
Tₘₐₓ	60°C
Packaging	tray

Sammelverpackung	-/12/- pcs
Gewicht	9.000000 g
Gewicht Sammelverpackung	-/108 g/-
Zolltarifnummer	85078000

2	pcs	Minimum order quantity
1	pcs	Multiple
-/12/-	pcs	Sammelverpackung
